typewriter/firmware

Typoena firmware

Rust crate targeting xtensa-esp32s3-espidf. See the project root README.md and docs/v0.1-mvp-technical.md for the wider context.

Current state

Spike 1 — Blink. Toggles GPIO 2 every 500 ms and logs blink N to the USB-serial console. This proves three things only:

1. The Espressif Rust toolchain (Xtensa) is installed and on PATH.
2. The crate links against esp-idf-svc and compiles for xtensa-esp32s3-espidf.
3. Basic GPIO output works on real silicon — verified 2026-07-04 on an ESP32-S3 (rev v0.2, 16 MB flash): blink N streams at 1 Hz over USB-serial (115200) and GPIO 2 + the on-board WS2812 toggle in lockstep.

Everything past that — EPD, SD, USB host, partial refresh, Wi-Fi/TLS, gitoxide push — is its own follow-up spike per docs/v0.1-mvp-technical.md.

Quick commands

A justfile wraps the common commands and sources the espup env itself — run just in this directory for the list (build, flash, monitor, info, ports).

Build

Once per shell session, source the espup env (sets LIBCLANG_PATH and adds the Xtensa GCC to PATH):

. ~/export-esp.sh

Then from this directory:

cargo build --release

The first build is slow (the esp-idf C sources are checked out and built under .embuild/). Subsequent builds are incremental.

Flash (when hardware is on the bench)

cargo run --release triggers espflash flash --monitor via the runner configured in .cargo/config.toml. With the ESP32-S3-DevKitC-1 connected over USB you should see:

[…] blink 0
[…] blink 1
[…] blink 2
…

at 1 Hz on the serial monitor, and — if an LED is wired from GPIO 2 → 330 Ω → GND — the LED blinks in lockstep.

Pin choice

GPIO 2 is a safe general-purpose pin on the ESP32-S3-DevKitC-1: it's not tied to a strapping function at boot and not muxed to the USB or PSRAM peripherals. The blink loop also drives the on-board addressable LED — WS2812 on GPIO 48 (GPIO 38 on DevKitC-1 v1.1 boards) — via the RMT peripheral, so both a plain GPIO and the RMT path are exercised.

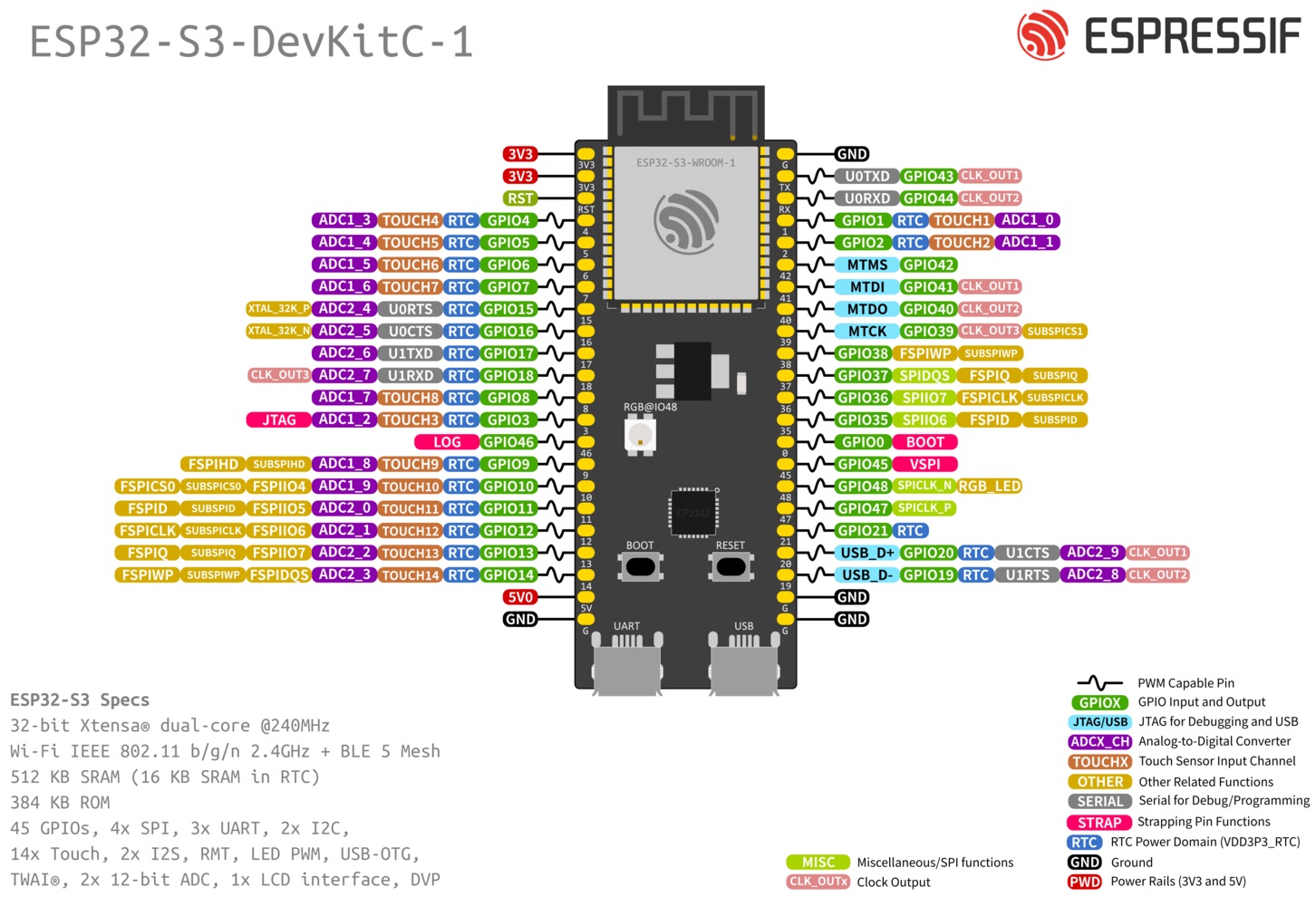

Board pinout

The bench board follows the ESP32-S3-DevKitC-1 v1.0 pinout — an ESP32-S3-WROOM-1 N16R8 module (16 MB flash, 8 MB octal PSRAM). The v1.0 revision wires the on-board WS2812 RGB LED to GPIO 48; v1.1 moved it to GPIO 38, so match assignments against this diagram, not the v1.1 one.

Source: Espressif ESP32-S3-DevKitC-1 v1.0 user guide. The octal PSRAM consumes GPIO 26–37, so those are unavailable for peripherals.

Editor / rust-analyzer

The repo-level .zed/settings.json configures rust-analyzer for this crate:

• cargo.target is pinned to xtensa-esp32s3-espidf with allTargets = false, so RA doesn't try to also check the crate for the host target (which can't build esp-idf-sys).
• binary.path is pinned to the rustup-managed rust-analyzer (stable toolchain), not Zed's bundled one. Reason: recent Zed builds ship a rust-analyzer that calls cargo metadata --lockfile-path, which is still gated behind -Z unstable-options in cargo 1.95 and fails on both the stable and esp toolchains. The rustup-managed RA is version-locked to the cargo it ships with and avoids the flag.

If a contributor on a different machine has issues, regenerate the path:

rustup component add rust-analyzer --toolchain stable
rustup which rust-analyzer --toolchain stable
# put the printed path into .zed/settings.json under lsp.rust-analyzer.binary.path

Two things rust-analyzer still needs from the environment Zed was launched in:

• LIBCLANG_PATH — required by bindgen inside esp-idf-sys.
• The Xtensa GCC on PATH — required by embuild during cargo check.

Both are set by ~/export-esp.sh. The pragmatic workflow:

. ~/export-esp.sh
zed /Users/julien/jclab/typewriter   # or: open from this shell

If Zed is launched from Finder/Dock instead, rust-analyzer will report bindgen errors on the first esp-idf-sys check. Close Zed, source the env in a terminal, and relaunch from there.

Toolchain pins

rust-toolchain.toml pins the channel to esp (installed by espup install). Cargo.toml currently includes git [patch.crates-io] overrides for esp-idf-sys / esp-idf-hal / esp-idf-svc (template default). These follow master and may need pinning to released versions if a master commit breaks the build.
