Enclosure — typewriter body (concept)

Part of Typoena — the distraction-free DIY writing machine. This page covers the enclosure only; the project root README covers the whole appliance (hardware, software stack, roadmap).

A 3D-printable case for Typoena. The e-paper strip sits on a reclined deck where a typewriter's sheet of paper would be; the keyboard you bring rests in front. There is no platen part (it complicates the print) — the rounded back-top edge is a subtle roll that nods to one for free.

Status: v0 concept, not yet printed. Outer form and the screen-retention / board-mounting strategy are worked out and render cleanly. Board hole positions and port offsets are placeholders marked << MEASURE >> in the .scad — confirm them against the real board before printing a final.

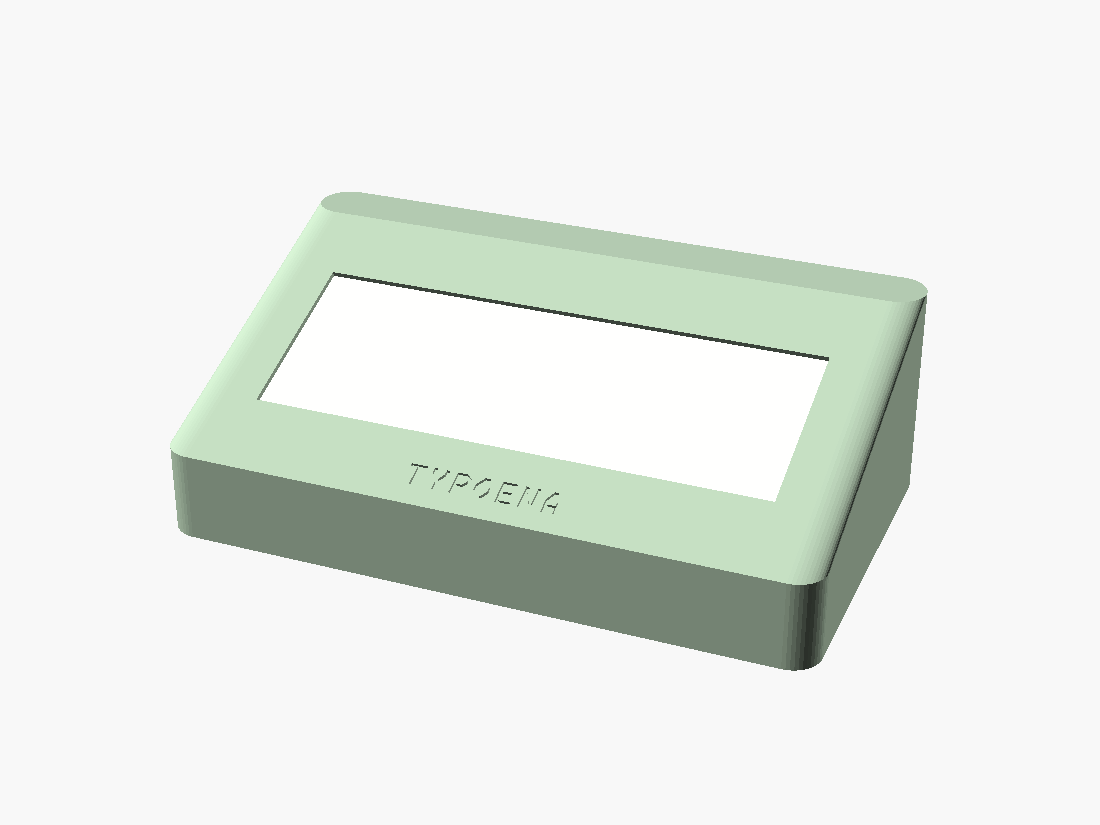

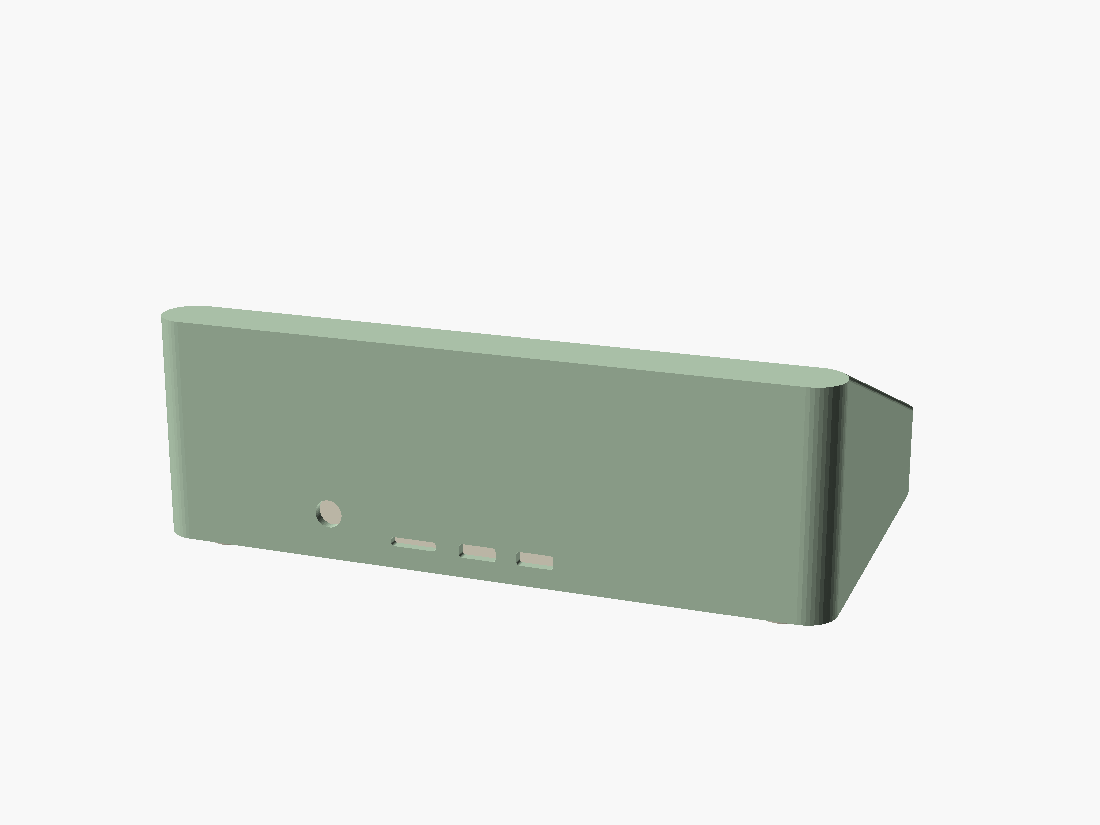

The deck: bezel lip framing the e-paper aperture, screen ghosted in Assembled body, three-quarter — reclined deck and the back wall with its port cutouts

Files

File What
typoena-case.scad The parametric model. All dimensions live at the top.
concept.html Dimensioned side/front/top drawing (open in a browser).
renders/ PNG previews (regenerated by the commands below).

Render / preview

Needs OpenSCAD. Open typoena-case.scad in the GUI and flip the show variable, or from the CLI:

cd hardware/case
# assembled, coloured, screen ghosted in
openscad -o renders/assembled.png --imgsize=1100,825 --colorscheme=Tomorrow \
  --camera=0,0,0,62,0,22,0 --viewall --autocenter \
  -D 'show="assembled"' typoena-case.scad

# export a printable part to STL (body | bracket | baseplate)
openscad -o body.stl -D 'show="body"' typoena-case.scad

show accepts assembled · body · bracket · baseplate · print_plate · section (vertical cut) · plan (exploded horizontal) · plan_up / plan_down (each half on its own).

Dimensions

From the datasheets, baked into the model:

  • Panel — GDEY0579T93: glass outline 150.92 × 56.94 × 1.0 mm, active area 139.00 × 47.74 mm, pitch 0.1755 mm. Strip aspect ~2.9:1.
  • Board — ESP32-S3-DevKitC-1: ~70 × 28 mm, USB-C ×2 + reset/boot on one short edge (that edge faces the back wall).
  • Body (default): 176 W × 104 D, 24 mm front → 58 mm back, deck reclined ~21°. Walls 2.4 mm, deck 2.6 mm, corner radius 8 mm.

The deck angle is the one knob worth tuning first — see below.

How the hardware goes in — glueless

The whole design avoids glue on the fragile 1 mm glass and keeps every part serviceable.

The bare body shell — screen recess cut through the deck, FPC slot on the left short edge

Screen (bezel lip + foam + screwed bracket)

 front face                     the sandwich, front → back:
 ┌───────────────┐              1. deck BEZEL LIP  (overlaps ~45 mm of the
 │  ┌─────────┐  │                 glass's inactive border only, never the
 │  │ active  │  │ ← lip           active area — lip_t = 1.4 mm of material)
 │  └─────────┘  │              2. GLASS drops into the recess from behind;
 └───────────────┘                 the recess walls locate it in X/Y
                                 3. FOAM gasket (non-adhesive closed-cell,
   [lip][glass][foam][bracket]      foam_t ≈ 1 mm) spreads the clamp load
        ↑ screwed to 4 bosses       so you never point-crack the glass
                                 4. printed BRACKET, screwed to 4 bosses,
                                    presses the stack forward
  • The through-aperture is a hair larger than the active area and stays inside the glass-minus-lip envelope, so the lip covers only dead border.
  • The recess opens into the cavity, and an internal FPC clearance on the left (the user's left as they face the screen) — kept below the bezel lip so it's invisible from outside — lets the flex fold back to the DESPI-C579 breakout. Nothing breaks the external bezel.
  • Foam does three jobs: cushions the glass, takes up print tolerance (±0.20.5 mm), and removes any need for adhesive. Cut it from a plain EVA/ PORON sheet — no sticky backing.
  • Alternative if you want no screws: replace the bracket with printed cantilever clips. It works, but clips point-load the glass edge; the foam+bracket route is gentler and I'd default to it.

The lip alone can't hold the glass — it only stops it falling out the front. The glass is trapped at both edges between the front lip and the rear foam+bracket; the bracket is what stops it dropping into the cavity (show="section"):

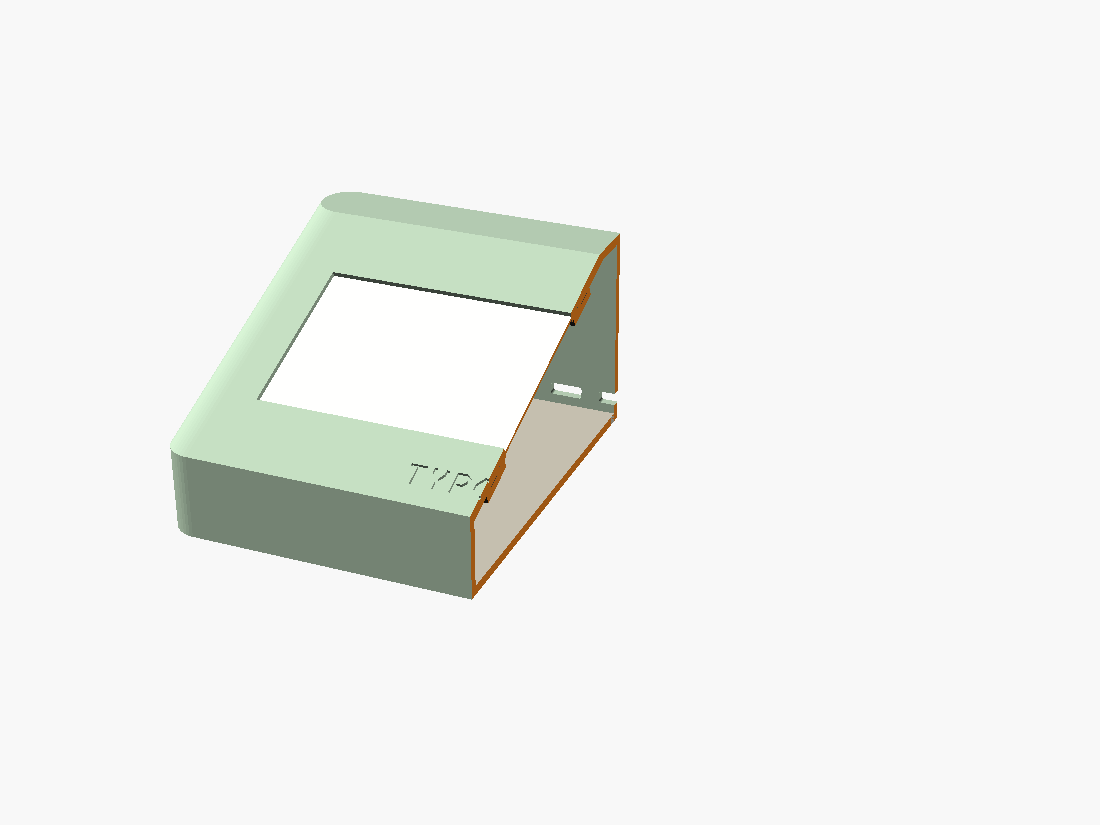

Midline section: glass clamped between the front lip and the rear foam + bracket; the internal FPC clearance is hidden below the left bezel, standoffs on the cavity floor

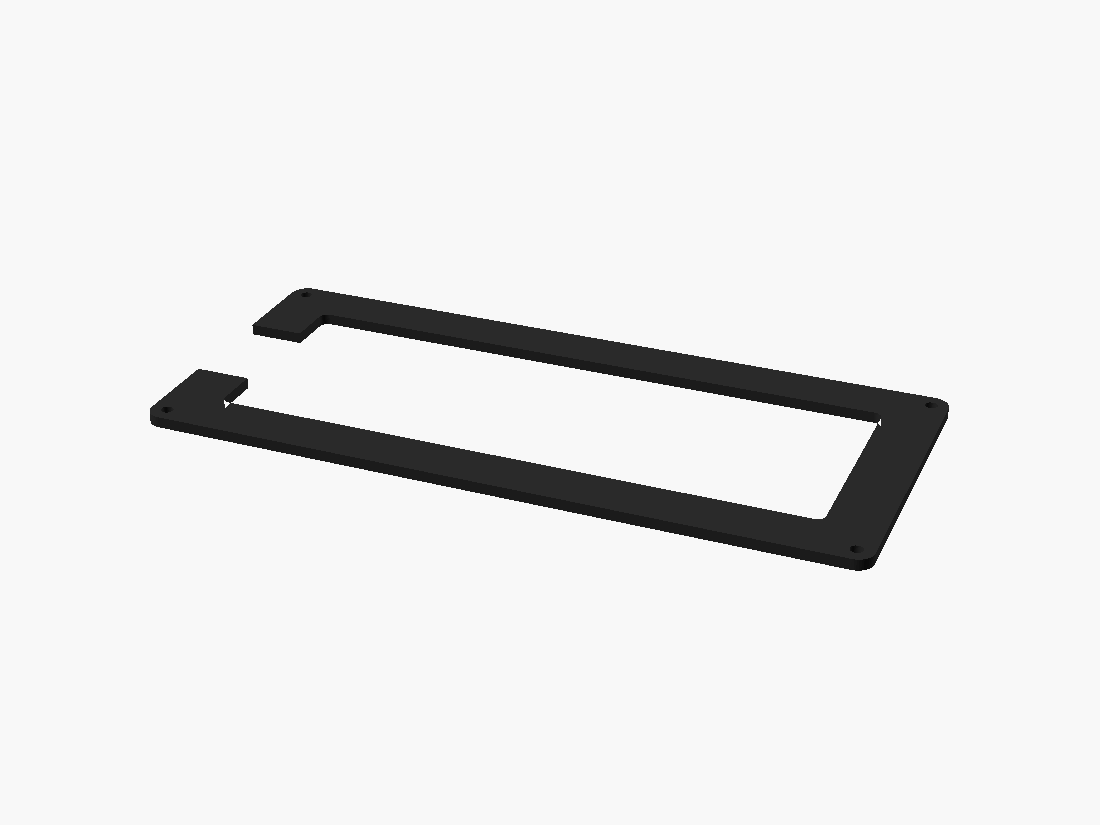

The screwed bracket — four corner holes, window clears the active area, and the left edge is relieved to give the FPC room to U-turn into the cavity

Boards (the baseplate is the chassis)

Mount everything to the baseplate on the bench, then drop it in and close from below — far easier than fishing screws inside a shell.

  • ESP32 + DESPI-C579 sit on printed standoffs (M2.5 self-tap). Positions in esp_holes / brk_holes are placeholders — set them to your board's holes. No mounting holes on your board rev? Switch to slide-in edge rails.
  • The DESPI-C579 breakout sits in the cavity on the left, right under the FPC exit; short SPI jumpers (MOSI/SCLK/CS/DC/RST/BUSY + 3V3/GND) run across to the ESP32. Keep that left channel clear.
  • A reset button — a small momentary switch, soldered to the board's EN and GND header pins — mounts through a hole in the back wall, out past the µSD slot so it's never hit while typing (rst_* params, << MEASURE >>). This is our own switch, not the DevKitC's on-board buttons: those are top-actuated and buried once the board lies flat. BOOT is deliberately omitted — on the S3, auto-download (UART-bridge DTR/RTS or the native USB-Serial-JTAG) makes it recovery-only, not worth a fat-fingerable button on a writing appliance.
  • The baseplate screws up into 4 corner posts in the shell.
  • A cable relief notch at the back lets the keyboard's USB-C cable exit and route around to the front.

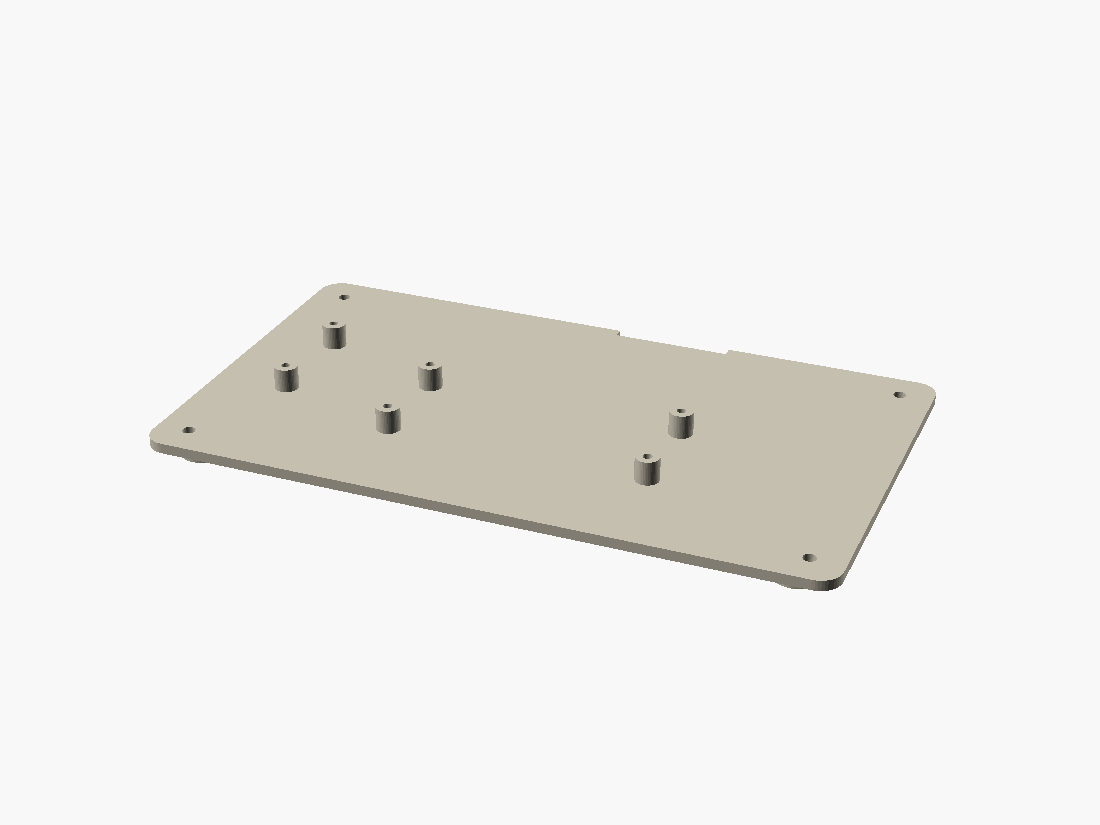

The baseplate — four standoffs for the ESP32 (centre) and two for the DESPI-C579 breakout (left, under the FPC exit); mount at the bench, then close from below

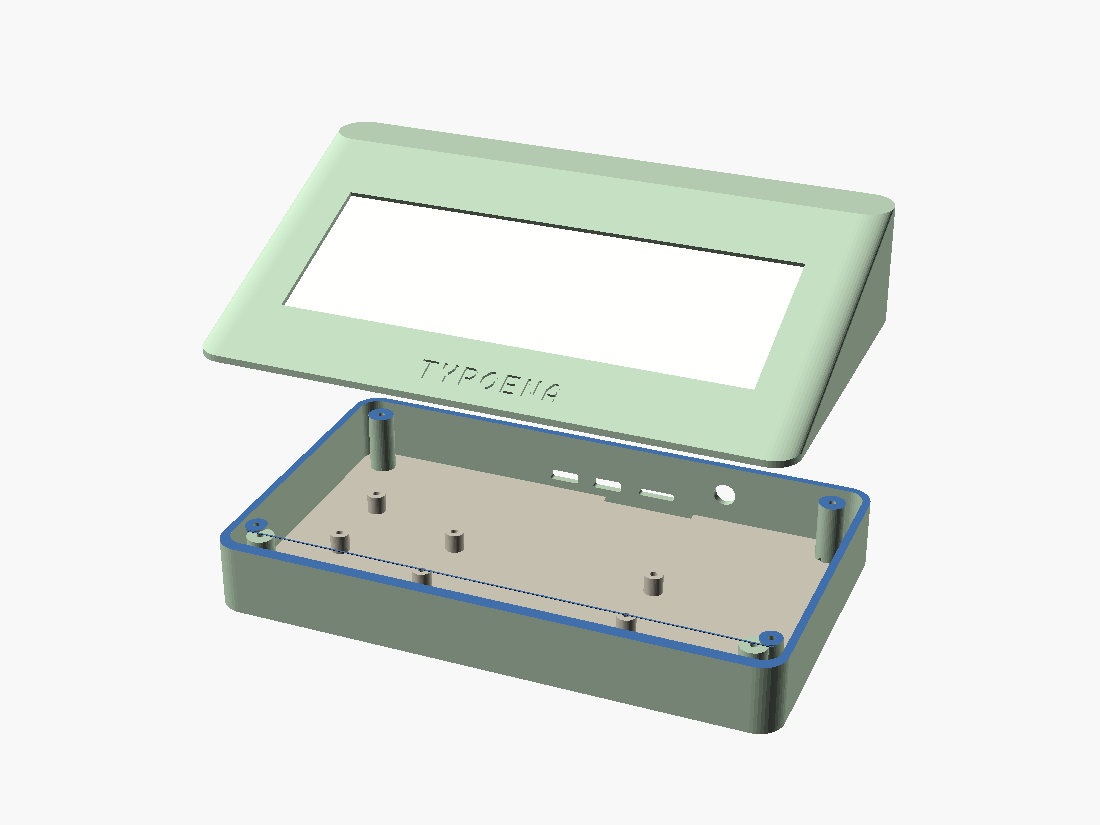

Exploded horizontal section (show="plan") — the deck/screen half lifts off the cavity half so you see both at once: ESP32 standoffs centre, DESPI-C579 standoffs left under the FPC exit, the two back corner posts, and the three port openings in the back wall.

Exploded plan section: deck/screen half lifted above the cavity half — standoffs, corner posts, back-wall ports

Or inspect each half alone — plan_up (the deck/lid, shown from below) and plan_down (the cavity):

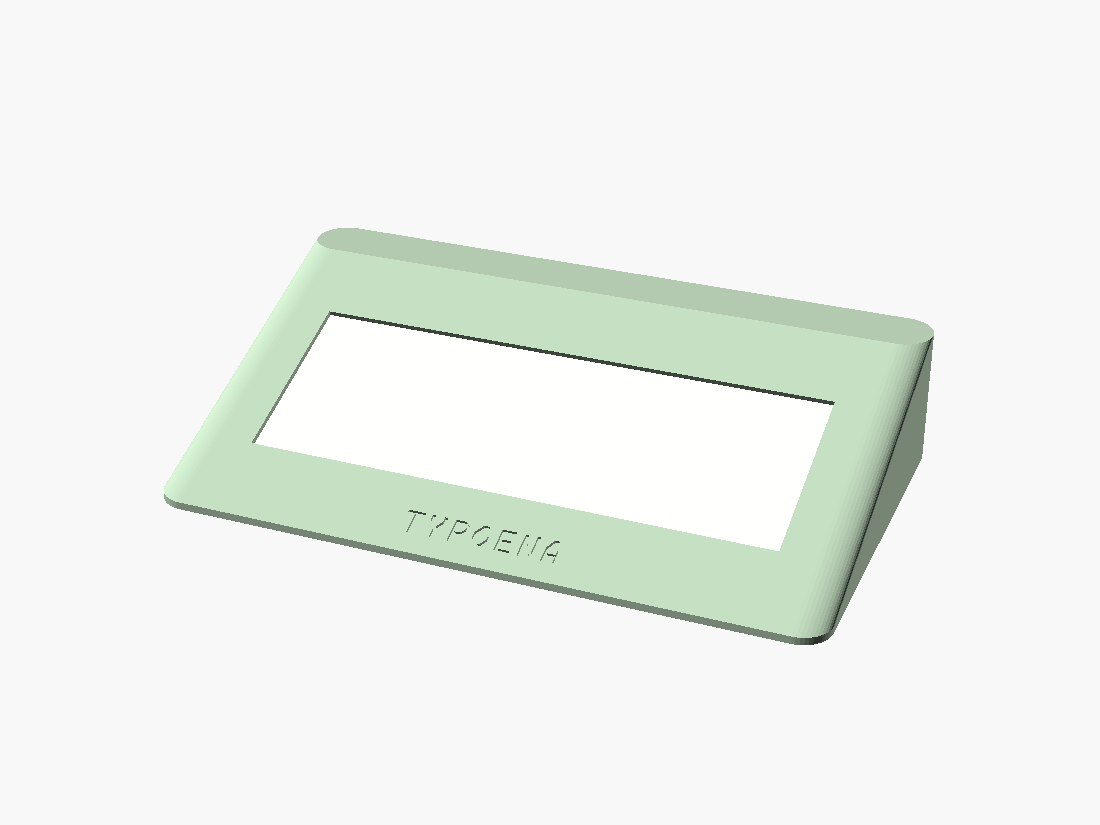

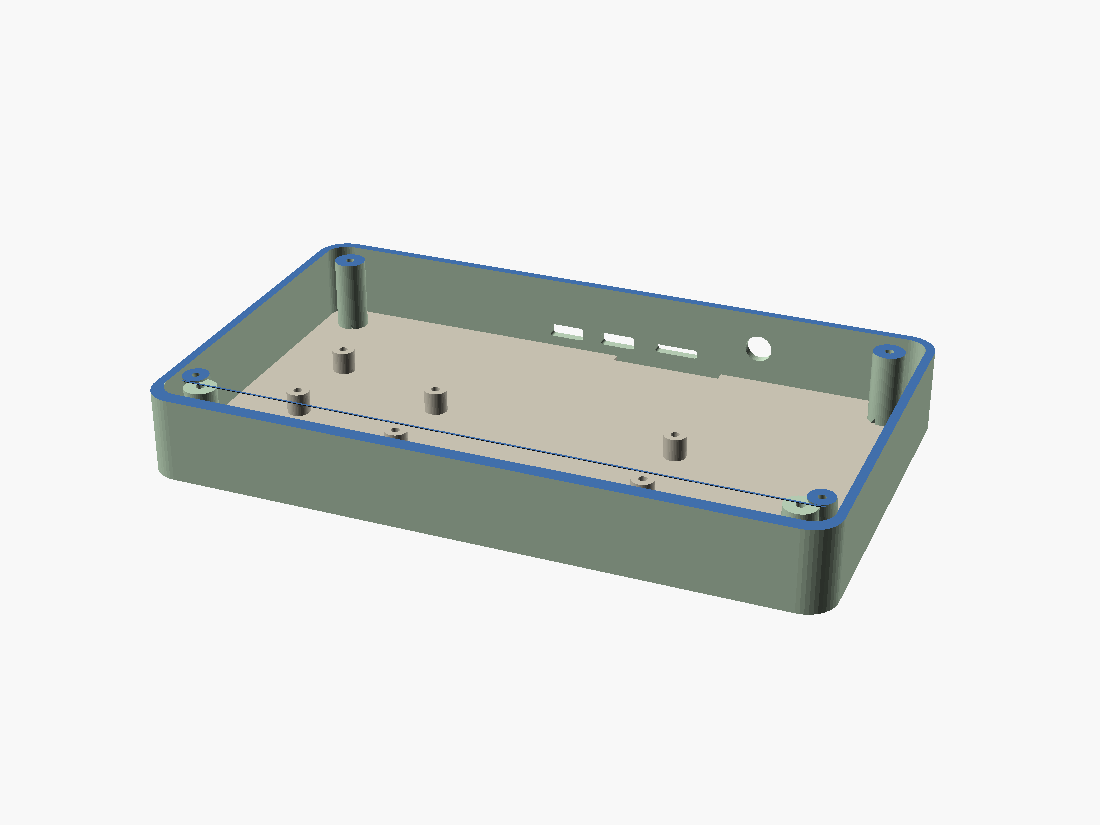

Top half (plan_up) — deck underside: the screen in its recess and the bracket bosses Bottom half (plan_down) — the cavity: standoffs, corner posts, back-wall ports

Assembly order

  1. Lay glass into the deck recess (from inside), add the foam gasket, screw the bracket down onto the 4 bosses.
  2. Screw ESP32 + breakout to the baseplate standoffs.
  3. Connect the FPC (screen → breakout) through the slot.
  4. Screw the baseplate up into the corner posts.

Tune first

  • Hb (back height) → deck angle. 1822° is typewriter-shallow; raise Hb toward ~2835° if the screen reads too edge-on when you're sitting close.
  • << MEASURE >> items: esp_holes, brk_holes, port_x, port_z, rst_x/rst_z/rst_d (reset button), active_off_x/y (the panel's active area sits off-centre from the glass).

Print notes

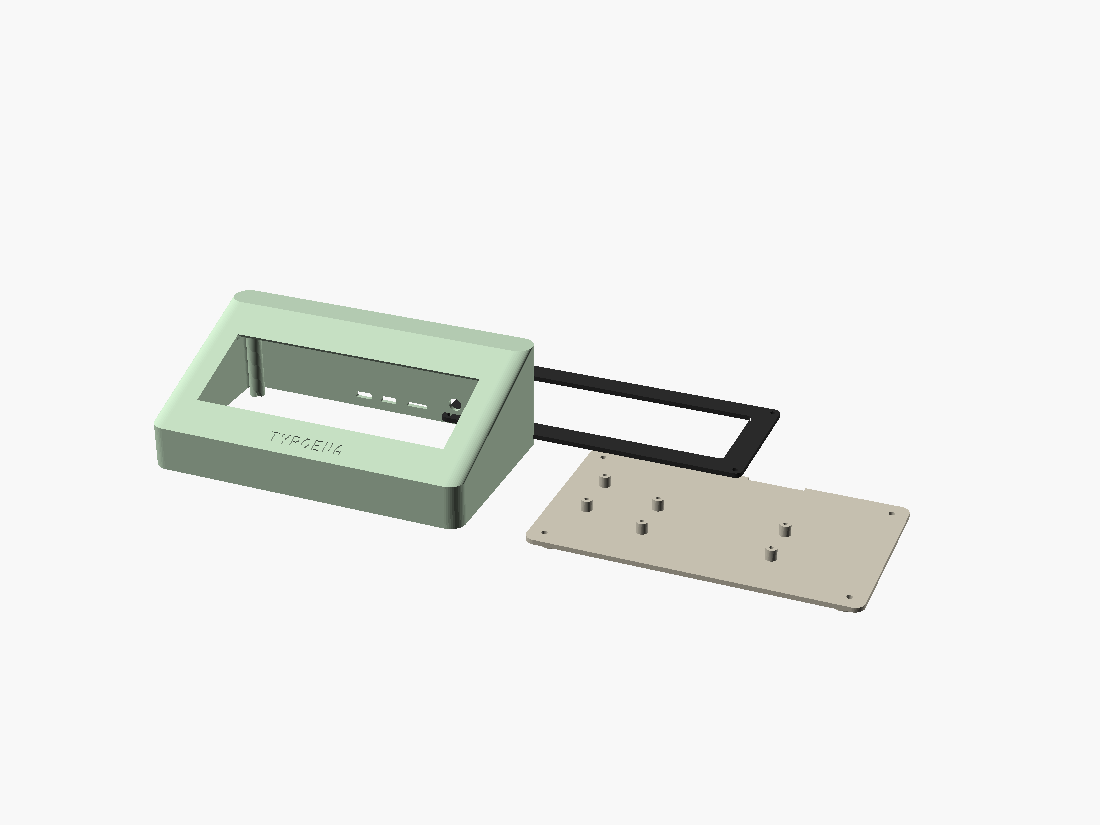

The three printed parts laid out — body, bracket, baseplate

  • Material: PLA/PETG. Print the body in matte indigo (#130f40), the bracket/base in cream or brass — two-tone reads unmistakably "typewriter" for the price of a filament swap.
  • Make the engrave read: on a body this dark the recessed TYPOENA is near-invisible until you give it contrast — a swipe of paint pen in the recess, or a 34 layer filament swap across the nameplate band mid-print.
  • Shell, not solid: 2.4 mm walls + open bottom keep material low despite the chunky body form.
  • Orientation: body deck-up (or on its back) needs little/no support; the bezel lip is a small overhang. Bracket and baseplate print flat.

Nameplate font

The recessed TYPOENA engrave on the deck, in Monaspace Krypton

The TYPOENA engrave on the deck (recessed, faces the user) is set via the name_font parameter. Current pick: Monaspace Krypton (GitHub's mechanical mono). OpenSCAD only renders fonts installed on the system:

# current: Monaspace Krypton (installs the whole family)
brew install --cask font-monaspace

# alternative tried: Cutive Mono (typewriter slab-serif)
curl -sL -o ~/Library/Fonts/CutiveMono-Regular.ttf \
  https://github.com/google/fonts/raw/main/ofl/cutivemono/CutiveMono-Regular.ttf

fc-cache -f    # so the OpenSCAD CLI picks either up

To audition other faces: Google Fonts, filtered to monospace and previewing the name.

Open questions / TODO

  • Confirm the GDEY0579T93 active-area offset (FPC confirmed on the left edge); adjust active_off_x/y.
  • Real board mounting-hole + port coordinates. A custom carrier PCB is planned — when it lands, re-fix esp_holes, port_x/z, and the reset rst_* to the PCB (and decide there whether to expose BOOT as a test pad).
  • Optional hinged lid over the deck (portable-typewriter-case echo, protects the glass in a bag) — docs/hardware.md calls for one; not yet modelled.
  • Decide feet: printed (modelled) vs. stick-on rubber bumpers.
